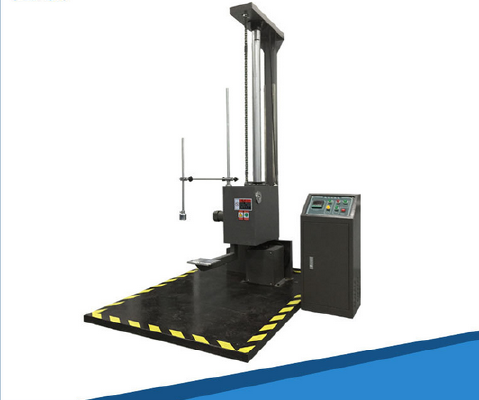

An ANCE brand model ACD-4126-D type wing drop test machine

Drop height 300-1500 (mm) test piece maximum weight 65 (kg) specimen maximum size (L * W * H) 800 * 800 * 800 (mm)

Impact panel size (L x W x H) 1700 x 1200 (mm) motor power 1.85KWA (KW) weight 600 (kg)

The power of AC380V 50HZ 5A (V\A) single arm bracket center distance of 160 x 180 x 8 (mm) use of test packages durable resistance

Test bench size 1700 x 2350 x 1200 (mm) test method drop test processing custom is drop height mm:300 - 1500

Measurement of maximum weight kg:65;

Maximum size of mm:800 * 800 * 800

Impact panel size mm:1700 * 1200

The size of mm:160 * 180 * 8

Drop error: < 1

Drop height error: 10mm

Test bench size mm: about 1700 x 2350 x 1200

Weight kg: about 600;

Power supply: 50HZ 5A AC380V

Power: 1.85KWA

Main use of double arm drop test machine:

Drop test machine for the wings of the product packaging in the simulation of different edges and in different height fell to the ground when the situation, to understand the product damage and evaluation of the product packaging components can withstand in the fall fall height and impact strength. According to the actual situation of the product and the national standard to improve, improve the packaging design.
